Replacing flush plate (Read 5167 times)

plumbdubai

GDPR opt-out

Replacing flush plate
Dec 20^th, 2014, 10:54am

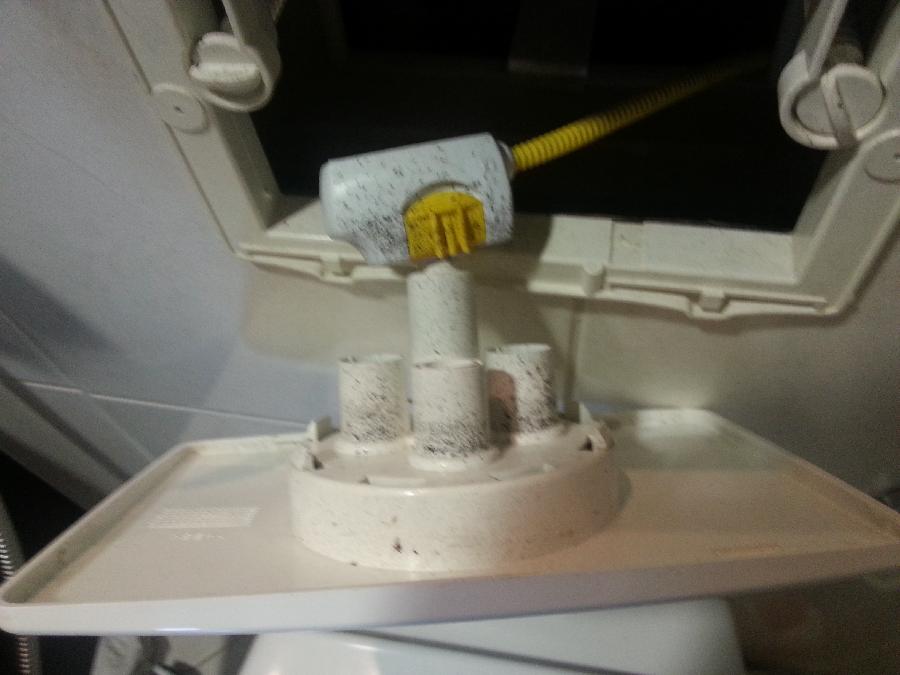

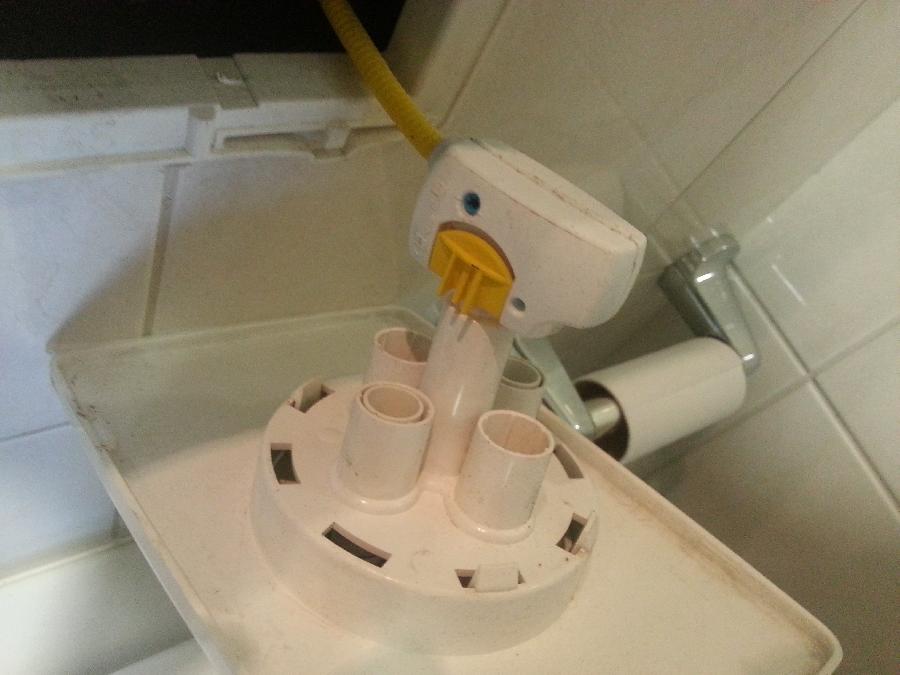

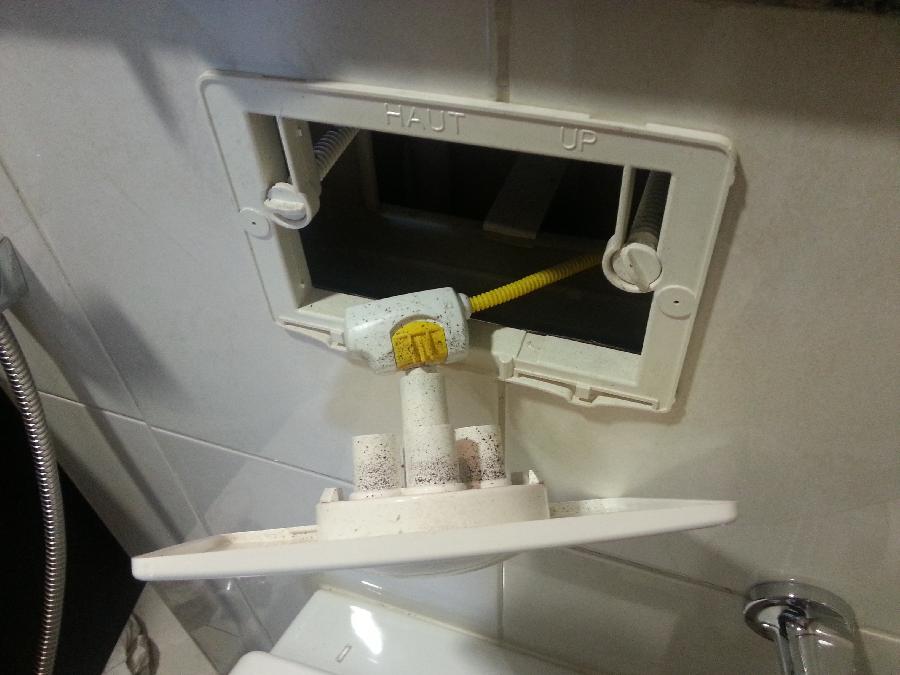

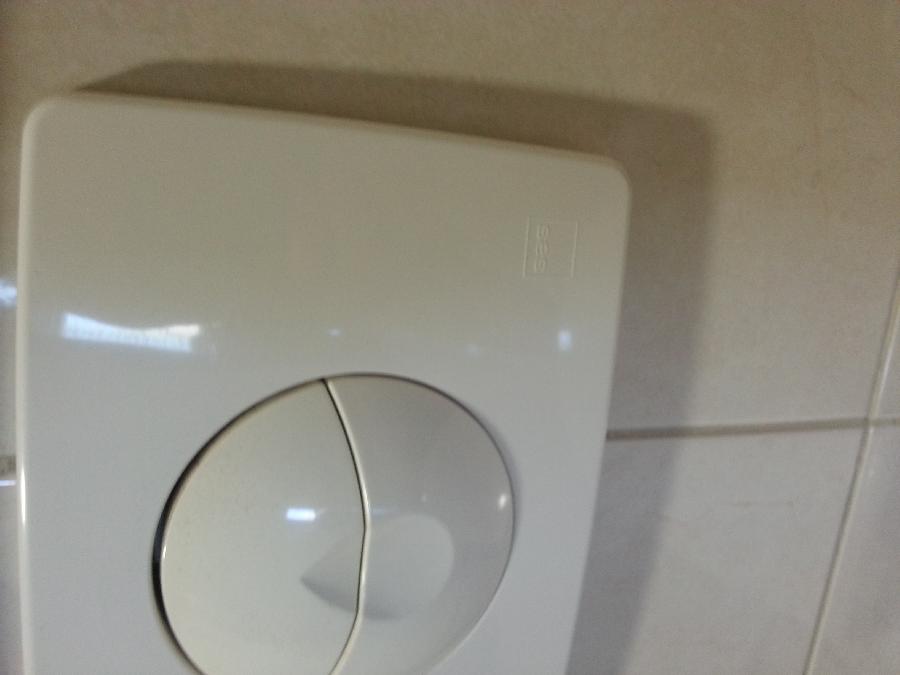

Hi I am looking to replace the plastic flush plate with something silver and would like to know what might fit as a replacement. The flush has a split two button function on the front, basically a disc of two halves but only one cable on the back. The only make I can see says SAS. Could someone please suggest a suitable replacement considering the fitting on the rear.
Thanks in advance (see gallery)

IP Logged

thescruff Global Moderator Trade Member Author Offline Who said plumbing was easy. Posts: 6037 Total Thanks: 147 For This Post: 0 Gender: Trade: Plumber	Re: Replacing flush plate Reply #1 - Dec 20^th, 2014, 11:03am Not seen that one, can you post some pics of the toilet and cistern, as they usuallly come as a package. Is the pan mounted on a frame.
Back to top	IP Logged

plumbdubai GDPR opt-out Total Thanks: 147 For This Post: 0	Re: Replacing flush plate Reply #2 - Dec 20^th, 2014, 11:23am http://www.alaceramica.it/site/en/en-modern-design-today.asp I think the pan is this one, it is not floating but I think the flush and cistern are different make. Will see if can get more access
Back to top	IP Logged

thescruff Global Moderator Trade Member Author Offline Who said plumbing was easy. Posts: 6037 Total Thanks: 147 For This Post: 0 Gender: Trade: Plumber	Re: Replacing flush plate Reply #3 - Dec 20^th, 2014, 3:14pm Are we talking England or United Arab Emirates, if the later have you any idea where it was purchased from.
Back to top	IP Logged

plumbdubai

GDPR opt-out

Total Thanks: 147
For This Post: 0

Re: Replacing flush plate
Reply #4 - Dec 20^th, 2014, 7:44pm

It's in the UAE but was looking to pick up something in the UK when back to replace it, works fine just want to change the finish, it is the same in 543 other apartments of Concorde Tower. The toilet is also original fitting and I have sourced as mentioned above as says ALA made in Italy, but the flush no luck on google. Just has s.a.s inside a square written as logo on front.

IP Logged

thescruff Global Moderator Trade Member Author Offline Who said plumbing was easy. Posts: 6037 Total Thanks: 147 For This Post: 0 Gender: Trade: Plumber	Re: Replacing flush plate Reply #5 - Dec 20^th, 2014, 11:11pm 2 option I can think off. 1- Bring the part with you and see if you can match something in the showrooms. 2- Buy one you like and modify the boxing
Back to top	IP Logged

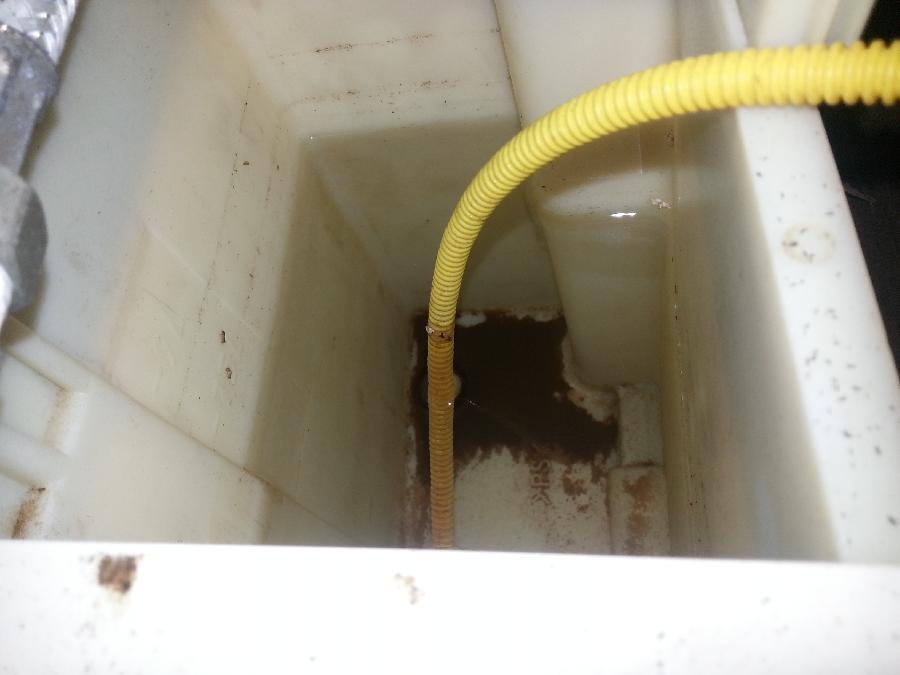

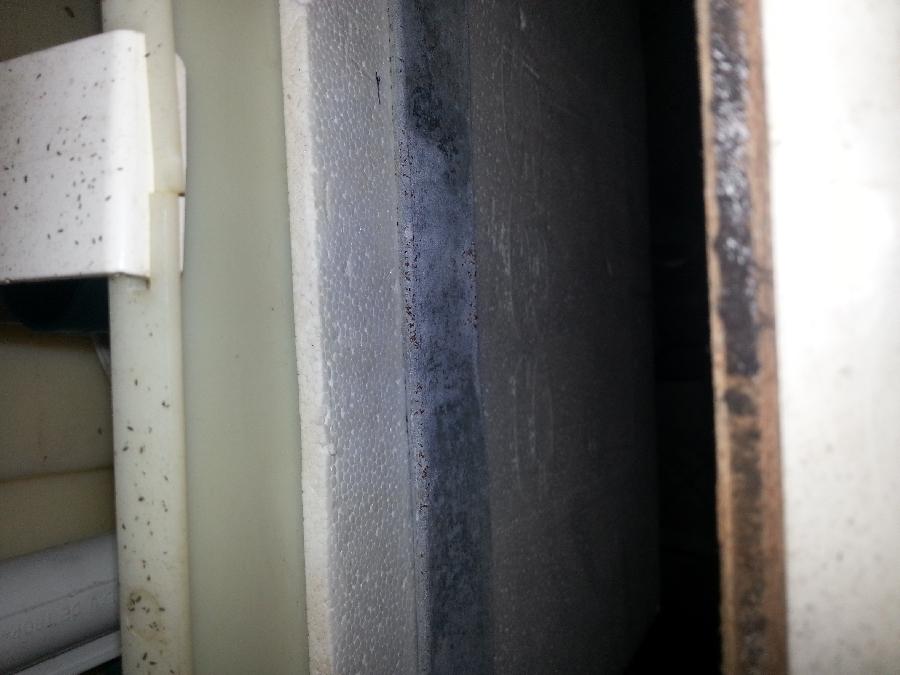

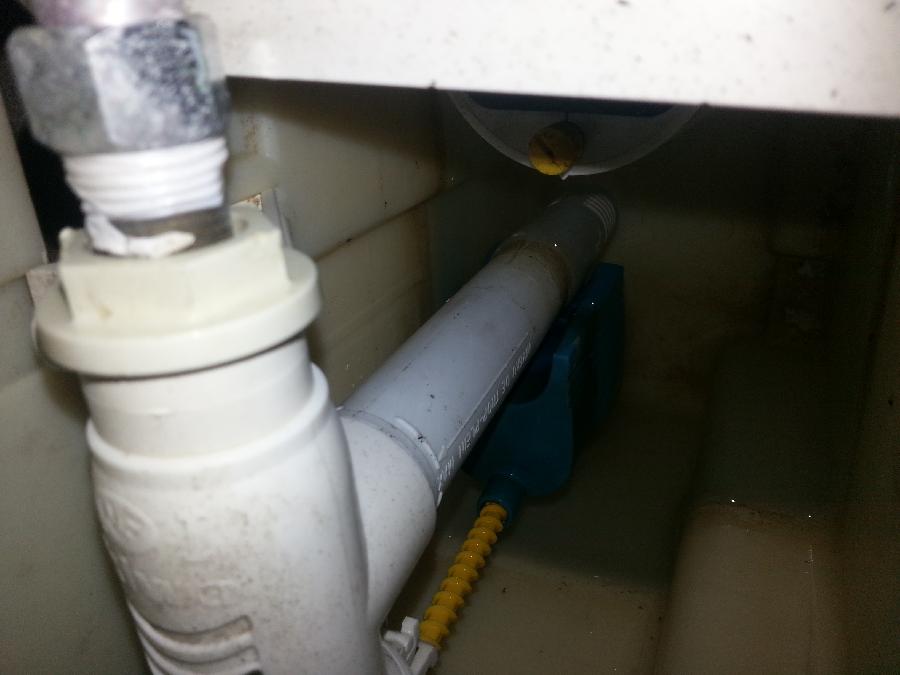

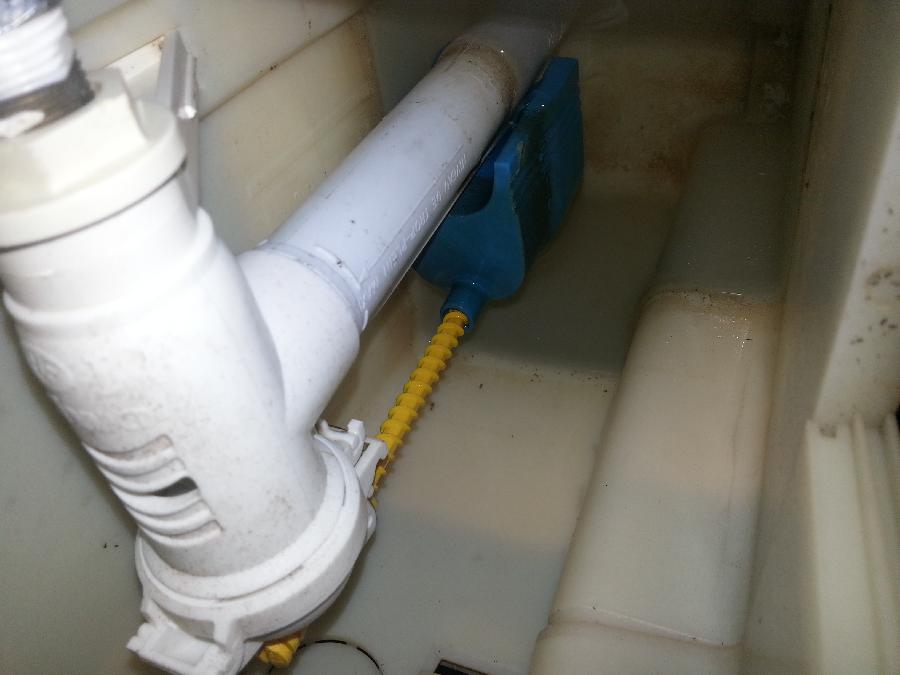

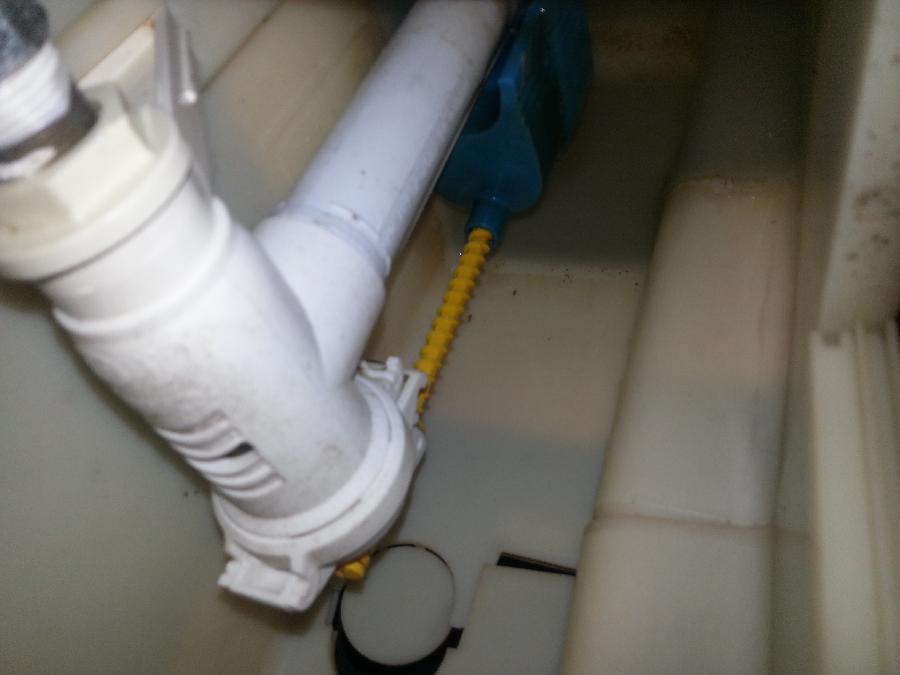

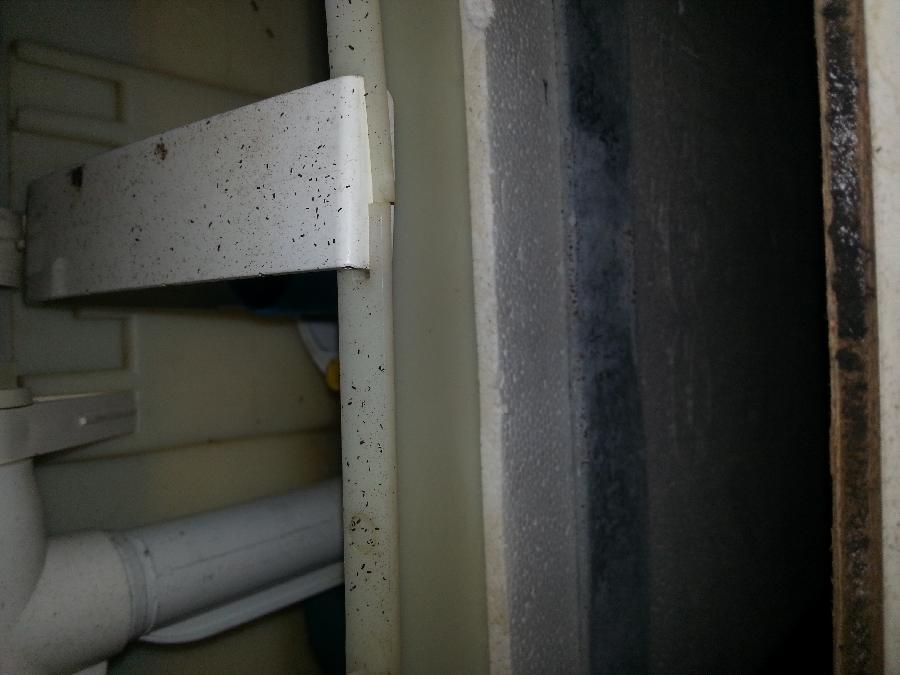

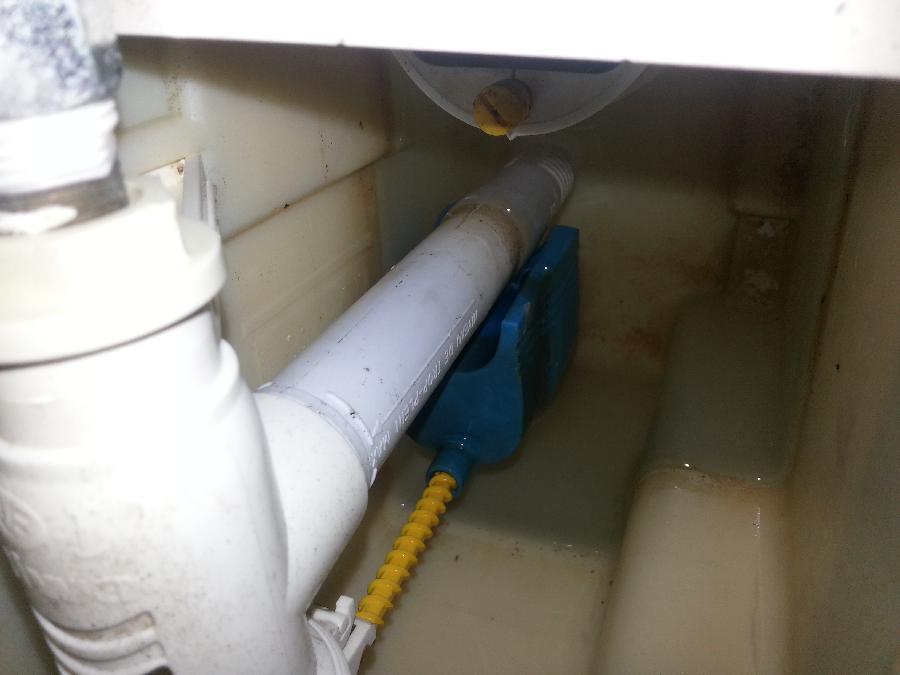

plumbdubai GDPR opt-out Total Thanks: 147 For This Post: 0	Re: Replacing flush plate Reply #6 - Dec 21^st, 2014, 8:20am Thanks, the front of the cistern polystyrene also says SAS, sorry about photos being sideways
Back to top	IP Logged

CWatters

Super Member

Offline

"Daddy fick it" says James

Posts: 5150

Total Thanks: 58
For This Post: 0

Gender: male

Re: Replacing flush plate
Reply #7 - Jan 1^st, 2015, 11:29am

I recently replaced my flush valve and discovered that the system used to connect the buttons to the valve varies from make to make. Mine was a dual flush pneumatic system with two pipes. I thought any button with two pipes would do but not so. It seems some makes send air down pipe "A or B" while other use an "A or Both" scheme. Needless to say the new flush I had wouldn't work with the existing buttons.

I suspect different systems may also exist for cable operated? So unless you can find exactly the same make you may have to change both the buttons and the flush valve.
