New Build House
Jul 11^th, 2015, 7:36am

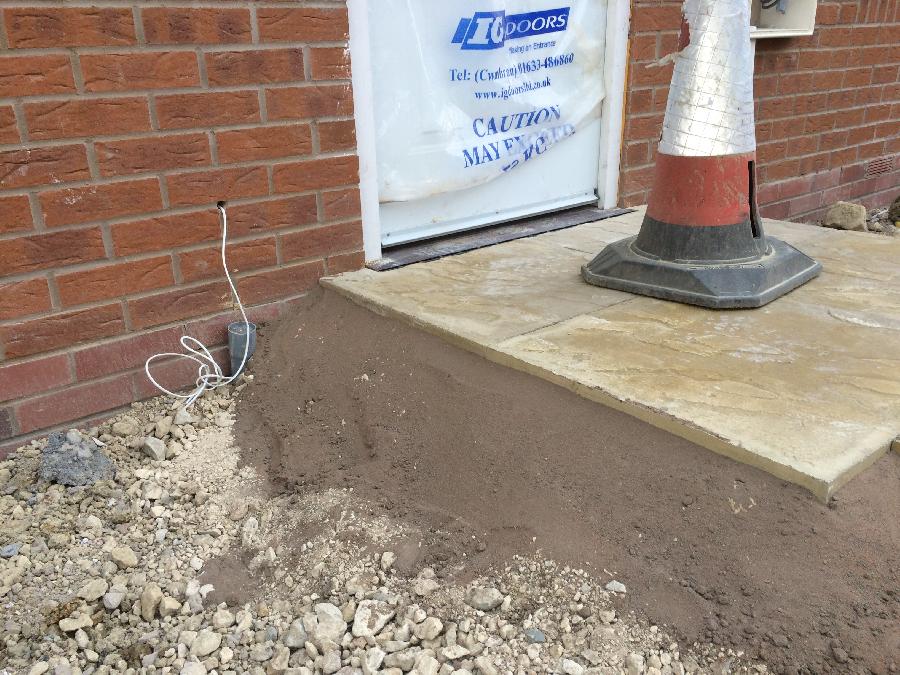

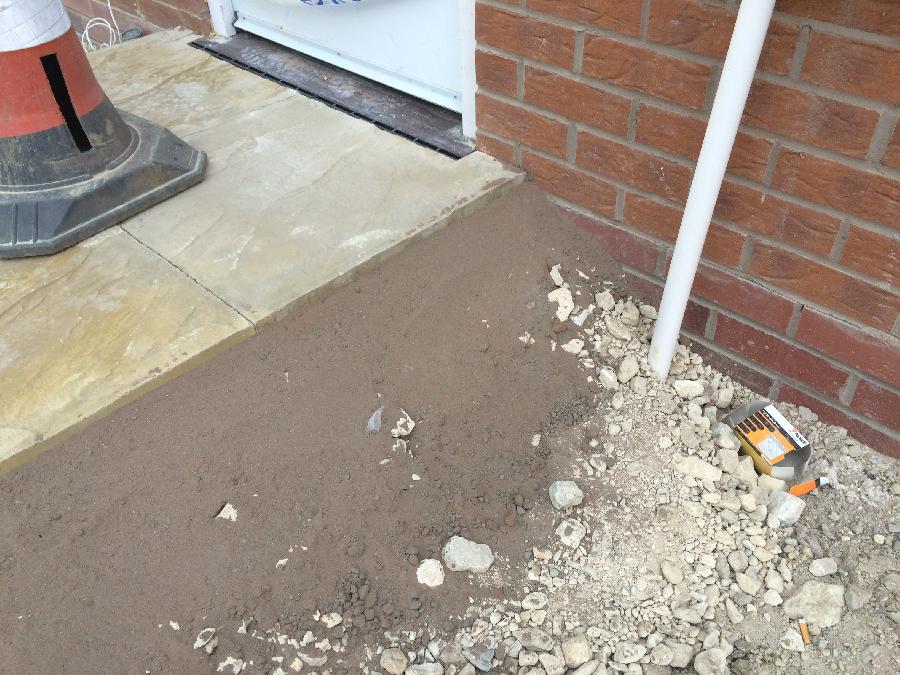

We were shown around our 'new build house' a few days ago by the builder (a large national housebuilder). I noticed that the front path to the front door seemed to bridge the DPC. Hopefully the pics in my members gallery are clear enough to show the situation. I have no knowledge of this subject so was just wondering if this is bad news. NHBC are yet to inspect so will they likely reject it seeing that it could become their problem?

« Last Edit: Jul 19^th, 2015, 9:21am by Lectrician »

IP Logged

CWatters

Super Member

Offline

"Daddy fick it" says James

Posts: 5150

Total Thanks: 58
For This Post: 0

Gender: male

Re: New Build House
Reply #1 - Jul 17^th, 2015, 11:34am

Looks like yet another builder forgot to design in their Part M access ramp. Roll Eyes

The correct way to do this is to build a wall about 2" away from the house with the paving slab overhanging say 1.5" so there is only a 0.5" gap to cross. That way you have a level access with no risk of rain blowing under the door and you don't bridge the DPC.

What do they plan to do either side of the ramp? Fill it up with topsoil that will also bridge the DPC?

IP Logged

CWatters Super Member Offline "Daddy fick it" says James Posts: 5150 Total Thanks: 58 For This Post: 0 Gender:	Re: New Build House Reply #2 - Jul 17^th, 2015, 11:40am Example cross section...
Back to top	IP Logged

CWatters Super Member Offline "Daddy fick it" says James Posts: 5150 Total Thanks: 58 For This Post: 0 Gender:	Re: New Build House Reply #3 - Jul 17^th, 2015, 12:23pm I had another look at your photo and can see the DPC is just under the sill so the bridging is minimal. They have also fitted a linear drain which is probably connected to the pipe to the left of the door. So over all I don't think it will cause a problem but it's not how I would do it.
Back to top	IP Logged

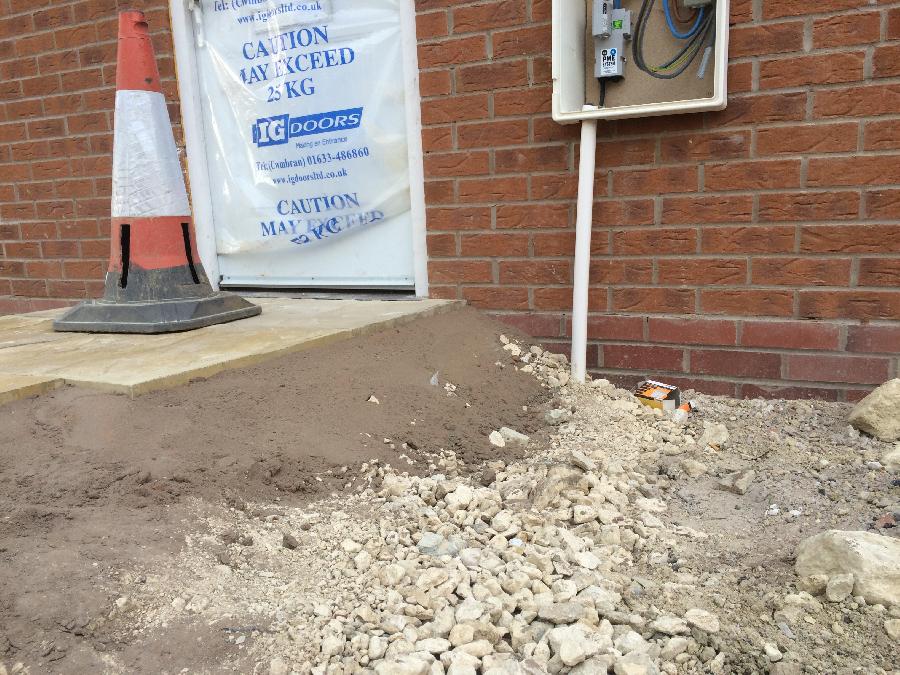

Lectrician Administrator Trade Member Author Offline Ask The Trades Posts: 8814 Total Thanks: 109 For This Post: 0 Braunton, North Devon United Kingdom Gender: Trade: Electrician	Re: New Build House Reply #4 - Jul 19^th, 2015, 9:26am Pipe to the left of the door is a BT duct ready to come up to the white cable with capping.
Back to top	« Last Edit: Jul 19^th, 2015, 9:30am by Lectrician » Need to post a picture? Click HERE for info! IP Logged

CWatters Super Member Offline "Daddy fick it" says James Posts: 5150 Total Thanks: 58 For This Post: 0 Gender:	Re: New Build House Reply #5 - Jul 26^th, 2015, 6:54pm I wonder where the drain goes then?
Back to top	IP Logged

thescruff Global Moderator Trade Member Author Offline Who said plumbing was easy. Posts: 6037 Total Thanks: 147 For This Post: 0 Gender: Trade: Plumber	Re: New Build House Reply #6 - Jul 26^th, 2015, 7:20pm What drain CW. Be interesting to see the finish level as there are air vents bwlow DPC.
Back to top	IP Logged

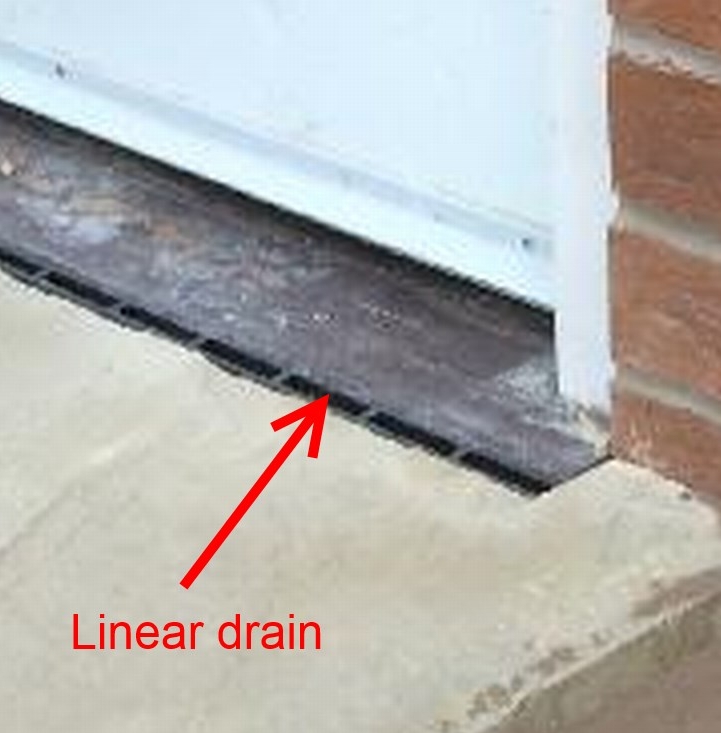

CWatters Super Member Offline "Daddy fick it" says James Posts: 5150 Total Thanks: 58 For This Post: 0 Gender:	Re: New Build House Reply #7 - Aug 2^nd, 2015, 8:01pm It's hard to see on the original photos but if you zoom in they fitted a linear drain between slab and sill....
Back to top	IP Logged

thescruff Global Moderator Trade Member Author Offline Who said plumbing was easy. Posts: 6037 Total Thanks: 147 For This Post: 0 Gender: Trade: Plumber	Re: New Build House Reply #8 - Aug 3^rd, 2015, 11:38pm Thanks CW you got better eyes than me
