Do you think this would be accepted?
Mar 29th, 2016, 4:15pm

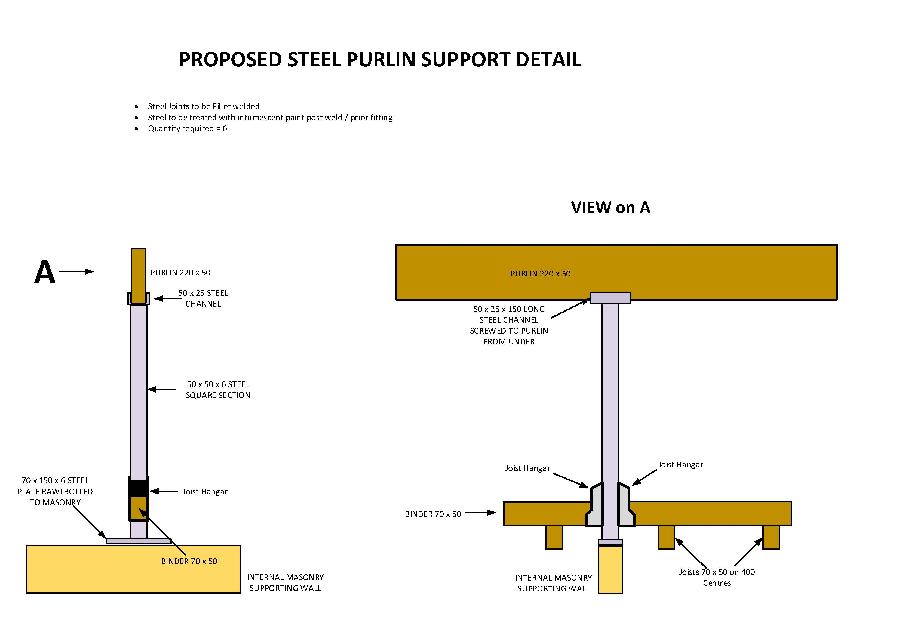

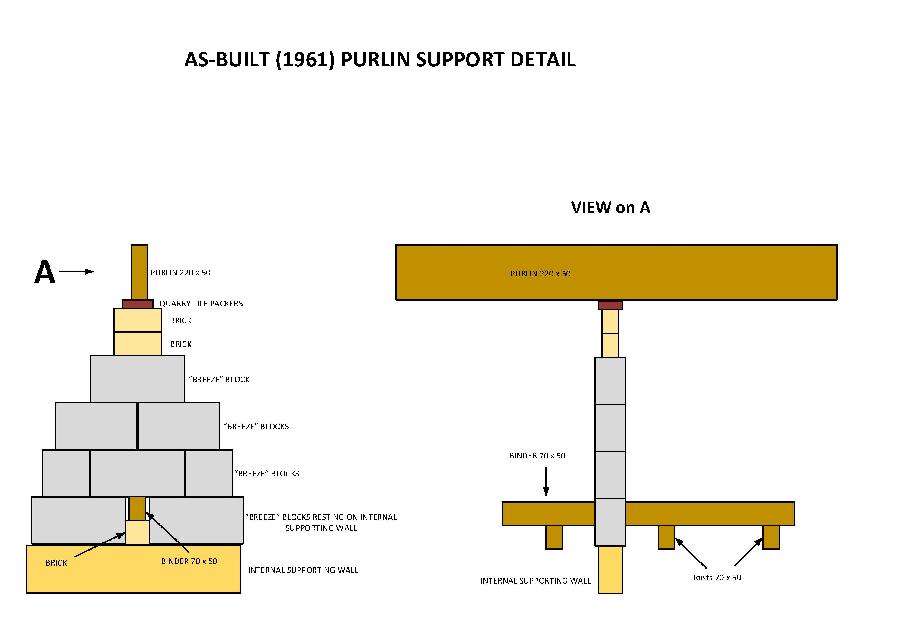

I'd like to do away with the old Purlin supports and put steel in instead.
I have attached two drawings - Would someone have a look and give an opinion?

Many Thanks
Image 1Image 2
Back to top

Thank User For This Post 22,CARRIAGE+DRIVE,+BIDDULPH View members image gallery
IP Logged

woodsmith
Global Moderator
Trade Member
Author
*****
Offline


Posts: 4395


Total Thanks: 135
For This Post: 1


Gender: male

Trade: Joiner

Re: Do you think this would be accepted?
Reply #1 - Mar 30th, 2016, 8:00am

This job will definitely need Building Control approval and they will need a structural engineers report before they agree to anything, so the first thing I would do is get a structural engineer to look at it. It is worth bearing in mind that the loading on purlins is not just vertically down, it can be down and inward, which is logical, but with certain roof designs the loading can be down and outward. Either way I think that if you provided just a vertical support you would need to tie the two opposing purlins together with a sizeable brace.
Back to top

Thank User For This Post View members image gallery
IP Logged

wozzer
Junior Member
**
Offline

The Jurassic Spark
Posts: 59


Total Thanks: 0
For This Post: 0


Gender: male



Re: Do you think this would be accepted?
Reply #2 - Mar 31st, 2016, 2:41pm

I left it for a while to see if anyone else would comment.
I'll get an Architect to look at the structure - If my idea is possible, it will give me another metre or so width on the loft conversion, so worth the question....
Thanks for the info Woodsmith - Appreciate it Smiley
Back to top

Thank User For This Post 22,CARRIAGE+DRIVE,+BIDDULPH View members image gallery
IP Logged

woodsmith
Global Moderator
Trade Member
Author
*****
Offline


Posts: 4395


Total Thanks: 135
For This Post: 0


Gender: male

Trade: Joiner

Re: Do you think this would be accepted?
Reply #3 - Mar 31st, 2016, 5:09pm

Not sure that an architect could help you, they normally pass this sort of problem to a structural engineer. I've just done something very similar myself where I had to remove a large brace between two enormous purlins as it was at head height and we needed to move it up out of the way. I've ended up making a king post truss out of oak, I hope you get a easier solution.
Back to top

Thank User For This Post View members image gallery
IP Logged
