Unvented HW system (Read 2107 times)
omicroneg
GDPR opt-out









Unvented HW system
Apr 6th, 2011, 11:39am

I have a source of potable well water that is pumped to a storage tank ~ 5m up in a barn next to my house. There is no loft space for a storage tank in the house. I would like to use the well water for the HW supply to the downstairs bathroom.

Given the low pressure could a vented type HW cylinder (+ expansion bottle) be used as an unvented cylinder? This would save having to run a vent line all the way back into the barn.

I would obviously be careful to make sure that an air inlet is provided on the outlet if the HW cylinder needed to be drained.

If a vent is needed could I use 15mm rather than 22mm?

Back to top


IP Logged

thescruff
Global Moderator
Trade Member
Author
*****
Offline

Who said plumbing was
easy.
Posts: 6037


Total Thanks: 147
For This Post: 0


Gender: male

Trade: Plumber



Re: Unvented HW system
Reply #1 - Apr 7th, 2011, 6:03pm

Not sure what you're trying to do, if you thinking of making an unvented cylinder don't.  Roll Eyes

Unvented cylinders need high pressure, so you would need to pump the supply to the house.

More info I think.
Back to top

Thank User For This Post View members image gallery
IP Logged

CWatters
Super Member
*****
Offline

"Daddy fick it" says James

Posts: 5150


Total Thanks: 58
For This Post: 0


Gender: male

Re: Unvented HW system
Reply #2 - Apr 8th, 2011, 9:13am

If I've understood correctly he's asking if this is ok and if so what type of cylinder would be needed (eg one approved for vented or unvented?). No pumps involved.

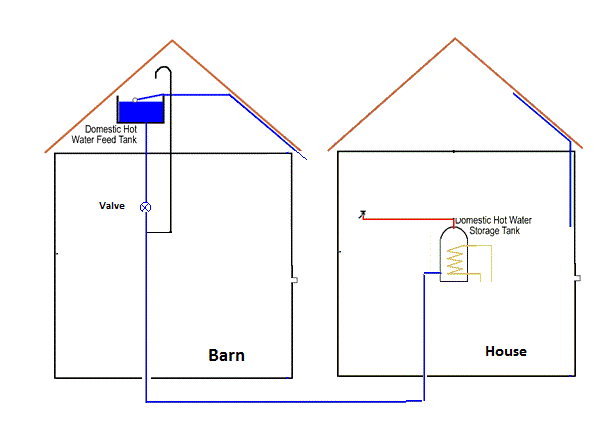

Image 5
Back to top
« Last Edit: Apr 8th, 2011, 9:18am by CWatters »
Thank User For This Post View members image gallery
IP Logged
