Converting 12V wall lights to 230V (Read 3553 times)
CWatters
Super Member
Offline
"Daddy fick it" says James
Posts: 5150
Total Thanks: 58
For This Post: 0
Gender:
Converting 12V wall lights to 230V
Jan 18
th
, 2014, 4:14pm

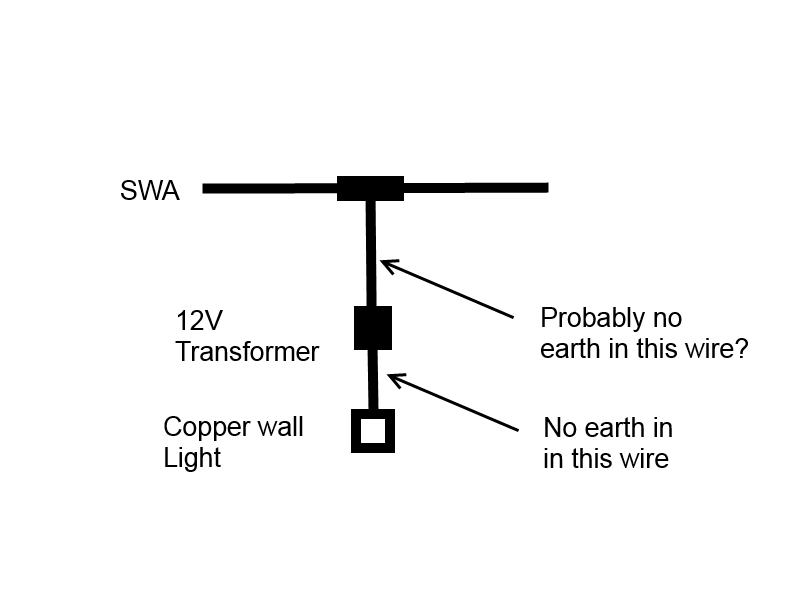

I have 11 or 12 outside wall lights. Each has it's own 12V transformer but I suspect several are leaking. The whole circuit has been off for a few years due to it tripping the RCD.
I was planning on converting the light fittings to 230V by simply cutting the wire between the potting boxes on the SWA cable and the transformers and changing the MR16 sockets to GU10.
However I have a horrible feeling there is no earth wire in thw wire from the potting boxes to the transformers.
The obvious answer is to break open all the potting boxes and replace the wire with one containing an earth but that would mean a lot of work and 11 new potting boxes, resin etc etc.
Is there an alternative? Presumably I can't get away without an earth as the light fittings are copper.
Back to top
(10 KB |
283
)
IP Logged
scotspark
Trade Member
Offline
mmmmm it's gonna cost
you!!
Posts: 3074
Total Thanks: 10
For This Post: 0
scotland
Scotland
Gender:
Trade: Electrician
Re: Converting 12V wall lights to 230V
Reply #1 -
Jan 19
th
, 2014, 3:23pm
fittings would need to be class 2
surprisingly some metal fittings are due to construction
Back to top
brown to red and blue to f****&&&&ommited!!!!!!!!!!!!!!!!!!!!!!!!!!!
IP Logged
CWatters
Super Member
Offline
"Daddy fick it" says James
Posts: 5150
Total Thanks: 58
For This Post: 0
Gender:
Re: Converting 12V wall lights to 230V
Reply #2 -
Jan 19
th
, 2014, 5:27pm
Sadly they aren't class II. I suppose it might be possible for me to make them double insulated but could be difficult.
Back to top
IP Logged
scotspark
Trade Member
Offline
mmmmm it's gonna cost
you!!
Posts: 3074
Total Thanks: 10
For This Post: 0
scotland
Scotland
Gender:
Trade: Electrician
Re: Converting 12V wall lights to 230V
Reply #3 -
Jan 23
rd
, 2014, 8:18am
make them double insulated
or
Rewire with 3 core
or
replace fittings with suitable double insulated fittings
Back to top
brown to red and blue to f****&&&&ommited!!!!!!!!!!!!!!!!!!!!!!!!!!!
IP Logged
